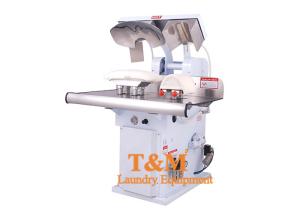

Finishing Equipment Forenta Shirt Press , Steam Heating Collar Hot Head Press Machine

Product Categories
T&M Laundry Equipment Co.，Ltd
Contact Now

Finishing Equipment Forenta Shirt Press , Steam Heating Collar Hot Head Press Machine

  • 1
  • 2
  • 3

Brand Name : T&M

Model Number : TM-27

MOQ : 1set

Supply Ability : 100set per month

Delivery Time : 7-15 workdays upon receipt of deposit

Packaging Details : WOODEN CRATE

NAME : COLLAR AND CUFF AND YOKE PRESSES

USE FOR : HOTEL AND LAUNDRY SHOPS

HS CODE : 845130000

HEATING : STEAM HEAT

Product Name : Hot Head Press Machine

Model : TM-27

Price : Negotiable

Payment Terms : T/T, L/C，Western Union

Contact Now

Laundry presses Utility press machine Finishing equipment steam heating ironning collar

For the customer seeking the best results possible. The TM-8 delivers consistent,high quality finishes every cycle.
It finishes the shirt collar and two cuffs in one operation and the yoke in a second operation .

Built on our world-renowned heavy-duty UA frame with cast-iron "Y" piece ,it will give years of trouble-free production .
Collar/Cuff presses form one part of a unique shirt system that increases productivity while reducing operating costs.

Features:

  • top quality hydraulic absorber
  • Snug fitting head and buck.
  • *Flexible metal-mesh padding ensures wrinkle-free pressing.

Technical Data:

Compressed Air – NPT 3/8"
Compressed Air Pressure – psi(bar) 80(5.5)
Compressed Air Consumption
free air/cycle at 80 psi – cu.ft.		 0.9
Steam Inlet/Outlet – npt DN 15
Steam Pressure – psi(bar) 100(6.9)
Steam Consumption – bhp(kg/h) 0.83 (13 )
Width – in (mm) 43.31 (1100)
Depth – in(mm) 41.73 (1060)
High – in(mm) 48.03 (1220)
Net Weight – lb(kg) 599 (270)
Shipping Dimensions
L/W/H－in (mm)		 50.39/44.88/55.91
1280/1140/1420
Shipping Weight – lb (kg) 702 (316)

How to use the pressing machine?

START-UP PROCEDURE:

Do not operate the press until the following five steps.

  • Open the stop valve in the steam return line.
  • Open the stop valve slowly, allowing the steam to gradually enter the press.
  • When operating pressure is reached, open the press drain valve in the return line and drain the condensate into a bucket units steam flows freely. Then close the stop valve tightly.
  • Open the air compressor.open any air inlet valve to the press; check regulator for maximum 60psi.

What's the Main products of your Company?

We are specilizing in Pressing machine more than 20 years. We offering full serial of Laundry & dryclean pressing machine. Finishing Equipments ,laundry equipments and laundry parts ,laundry accesorries....
